Our Batteries

Dragonfly Energy LiFePO4 batteries are designed and assembled in the USA. We offer a full line of lithium-ion deep cycle batteries for 12-volt, 24-volt and 48-volt systems, the ultimate replacements for traditional lead acid batteries and relief of battery anxiety … Lead Is Dead.

Dragonfly Energy batteries are designed specifically for OEMs, but our Battle Born Batteries line is perfect for dealers, installers and consumers.

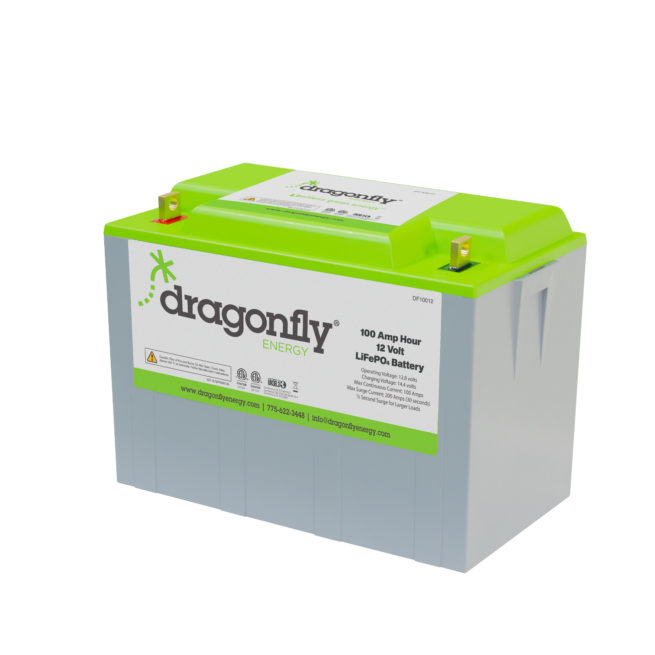

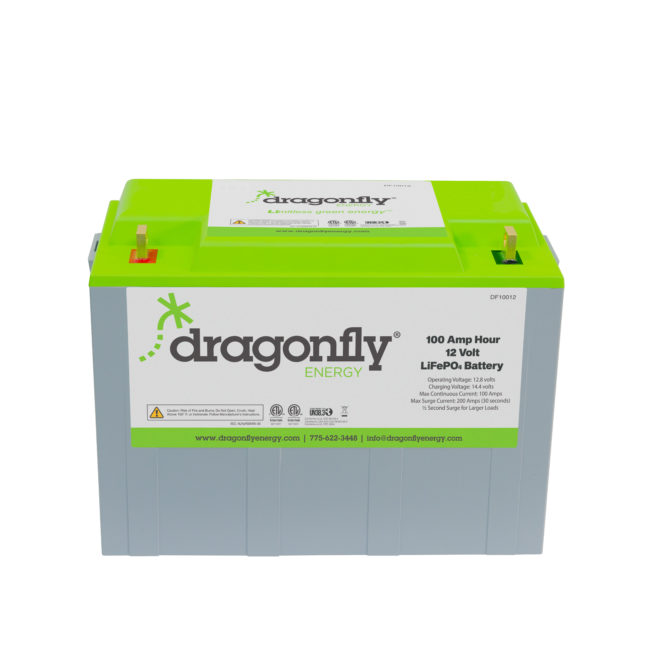

100 Ah 12V LiFePO4 Battery

  • 100 Amp Hour, 12 Volt Battery
  • LiFePO4 Chemistry
  • 3000- 5000 Cycles
  • Compatible with your current charger, smart charger or inverter charger
  • Designed and Assembled in Reno, Nevada, USA
  • ABS Fire Rated Case
  • 0.25″ Thick Brass Terminal Blades
  • Dimensions (L x W x H): 12.75 x 6.875 x 9
  • Weight: 31 lbs.
  • Operating Voltage: 12.8V
  • Charging Voltage: 14.4-14.6V
  • Float Voltage: 13.6V or lower
  • Operating Temp Range: -4°F to 140°F
  • Built in Battery Management System
  • 100 amp continuous current
  • 200 amp surge for 30 seconds
  • 1/2 second surge for higher loads
  • High/Low Voltage Protection
  • Short Circuit Protection
  • High/Low-Temperature Protection
  • Automatic Cell Balancing

10012 Manual
10012 Cutsheet
10012 Data Sheet

Patented Technology
Safe Chemistry
Guaranteed for 3000-5000 cycles
USA Designed and Assembled

Why the DF10012?

Our 10012 battery is the perfect drop-in replacement for your application, whether it be RV, marine, or off-grid. At just 31 pounds, the battery is 1/5 the weight of a standard lead-acid battery. Proudly designed and assembled in the United States, this battery is going to last you 3,000-5,000 cycles at 100% capacity, with a 100- amp continuous current, 200- amp surge current (for up to 30 seconds), and ½ second surge for higher loads. With our internal battery management system (BMS) the battery is protected from high and low voltages as well as high and low temperatures. Your battery anxiety will disappear so you can stay out there longer!

Why Lithium?

Lithium Iron Phosphate (LiFePO4) batteries have risen in popularity and have proven to outperform all of the different lead-acid models in deep cycle battery markets worldwide, all the while remaining completely safe and nontoxic to landfills.

Dragonfly Energy lithium batteries have a long list of major, quantifiable benefits over lead-acid batteries:

  • Charge up to 5 times faster
  • Can sit for up to a year in storage without requiring a maintainer
  • Improved cold temperature performance
  • Power density is much greater even though our batteries weigh less
  • Deliver higher amounts of power for longer periods of time
  • Don’t leak or corrode and are completely non-toxic and safe for the environment

If all these benefits are not enough, we have added protection and logic inside the battery itself. We have designed our internal BMS (battery management system) to protect your investment with short circuit, high and low voltage cutoffs, and thermal management. Our batteries will also balance themselves at the top end of every charge cycle with a passive balancing process.

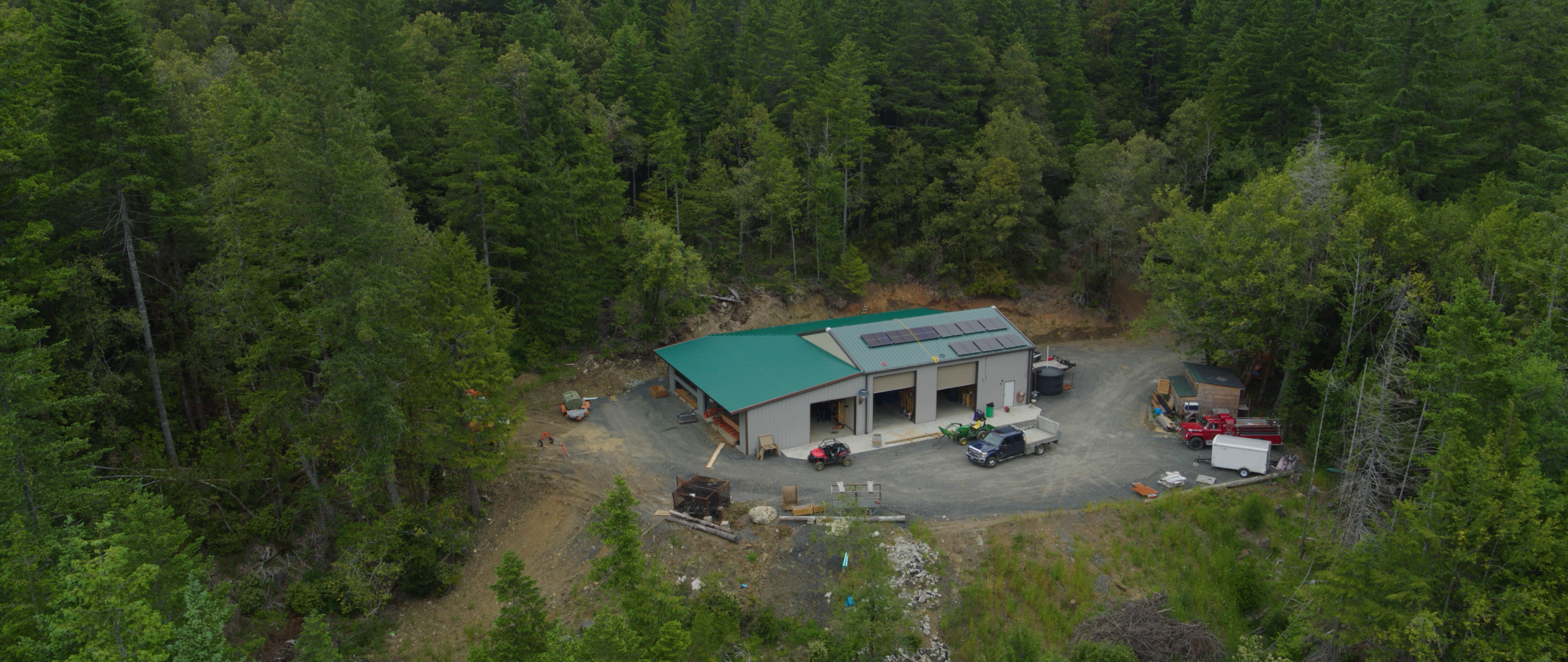

Our Batteries in Action

Interested in purchasing our batteries? Check out Battle Born Batteries.

Buy Now
